PCV reroute kit for 2016-2023 Toyota Tacomas with the 2GR 3.5l V6 engine.
If you own a 3rd gen Tacoma you've likely either seen or experienced the truck burning oil and creating a cloud of smoke on steep climbs. This is due to the location of the PCV (positive crankcase ventilation) pickup on the rear of the drivers side valve cover, as well as the location of oil drains within the cylinder head.

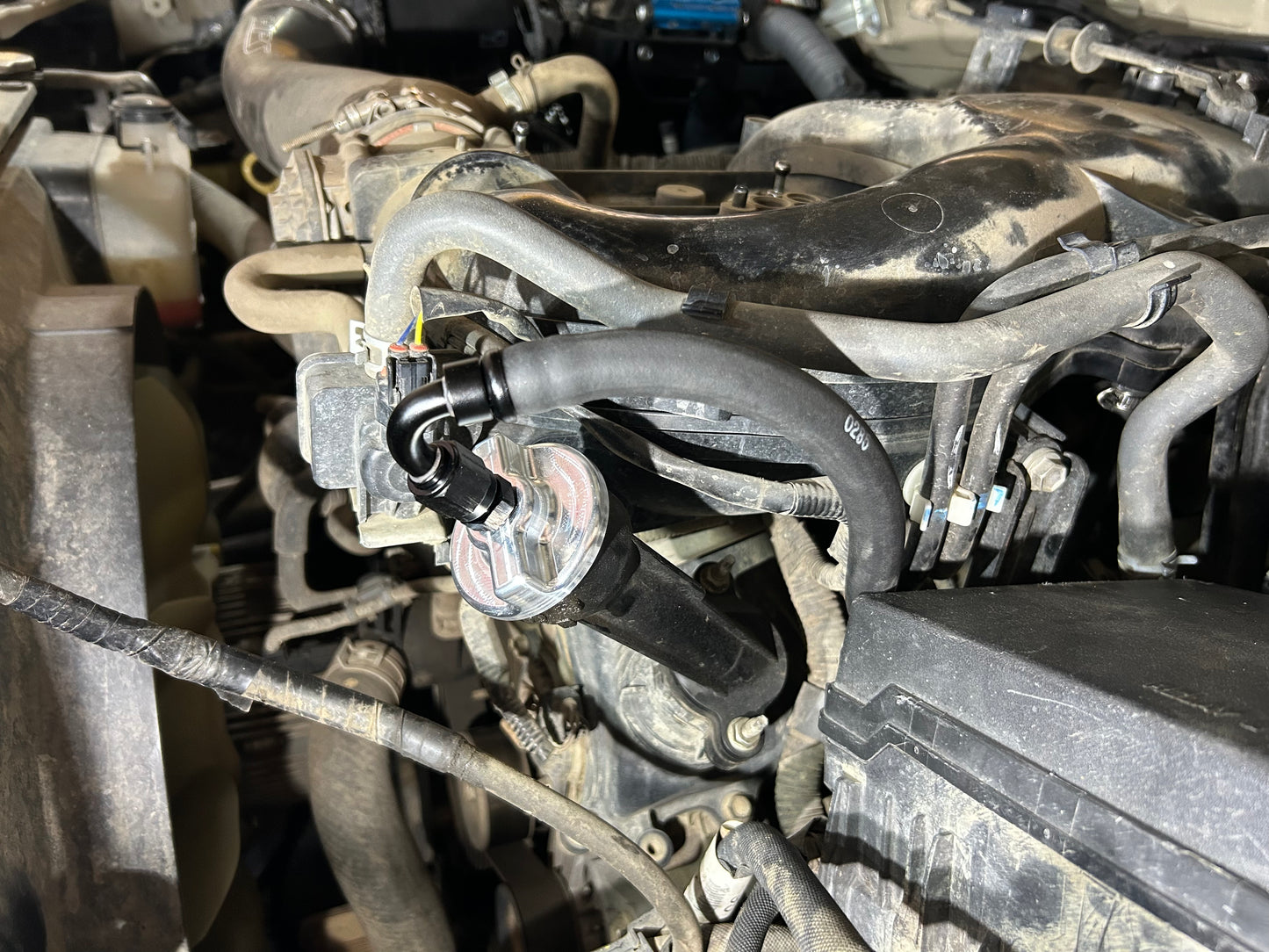

This kit replaces your oil cap with a new one including an AN fitting, allowing a hose to be routed from the cap to the intake where the original PCV hose runs. This allows positive crankcase pressure to be extracted from the oil fill cap on the front of the valve cover. There are also oil drains located near the front of the cylinder head, allowing for sufficient oil drainage.
Simply remove the OEM PCV hose, cap the PCV valve with the included cap, remove and replace the oil fill cap with the supplied cap, and route the hose to the fitting on the intake.
No modification of any component is required
-the reroute can easily be removed and replaced with the OEM components if desired.

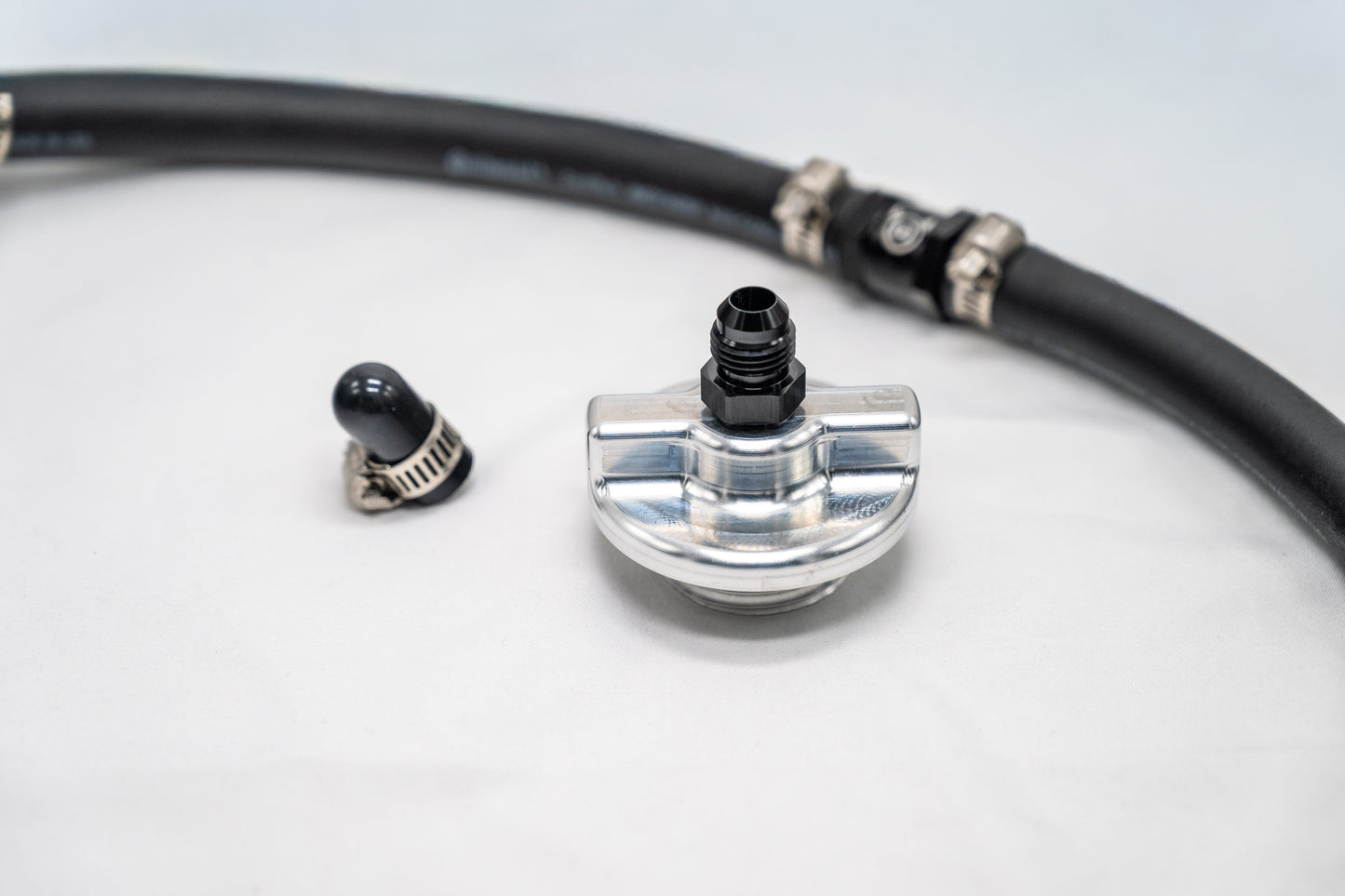

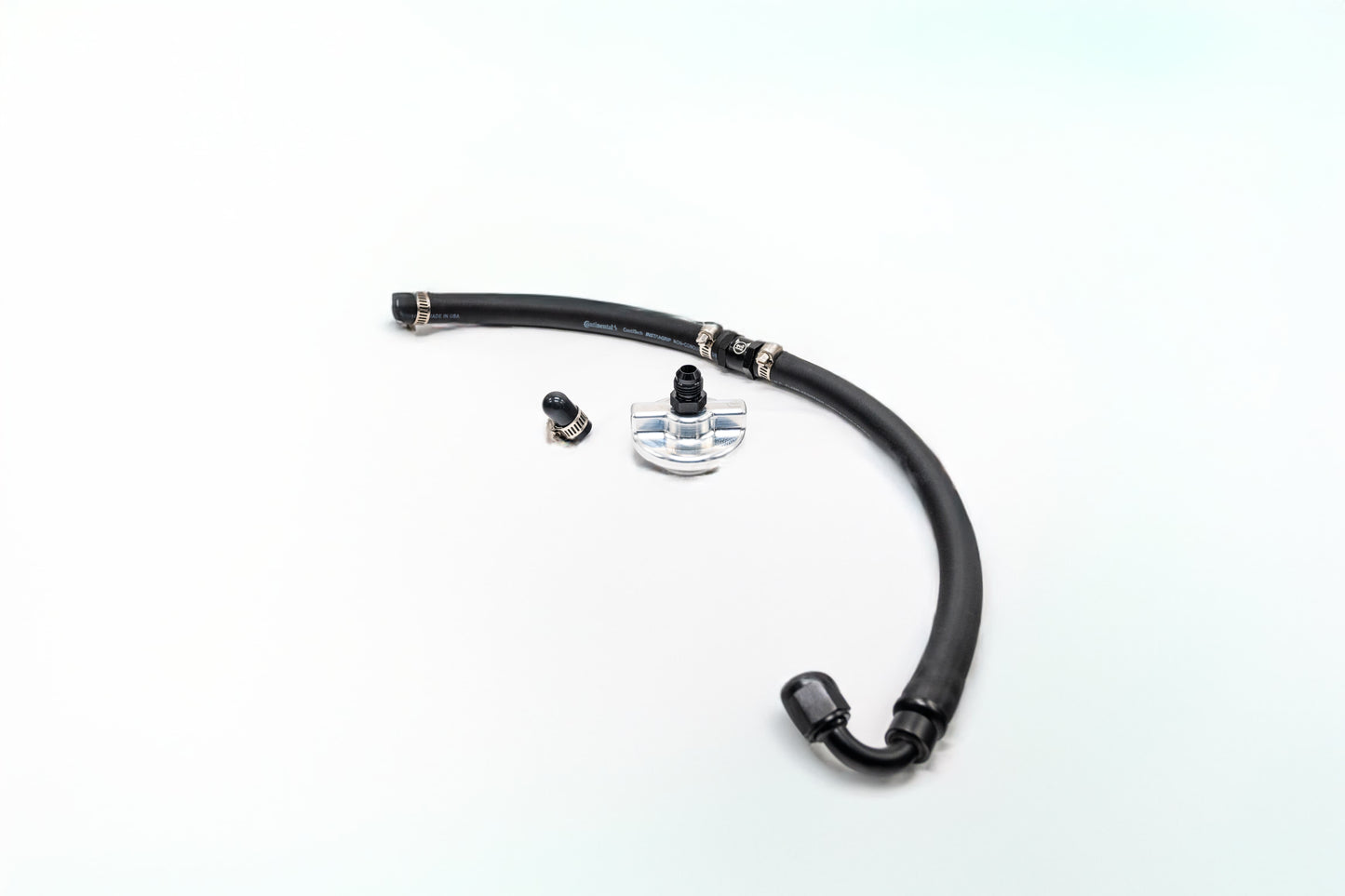

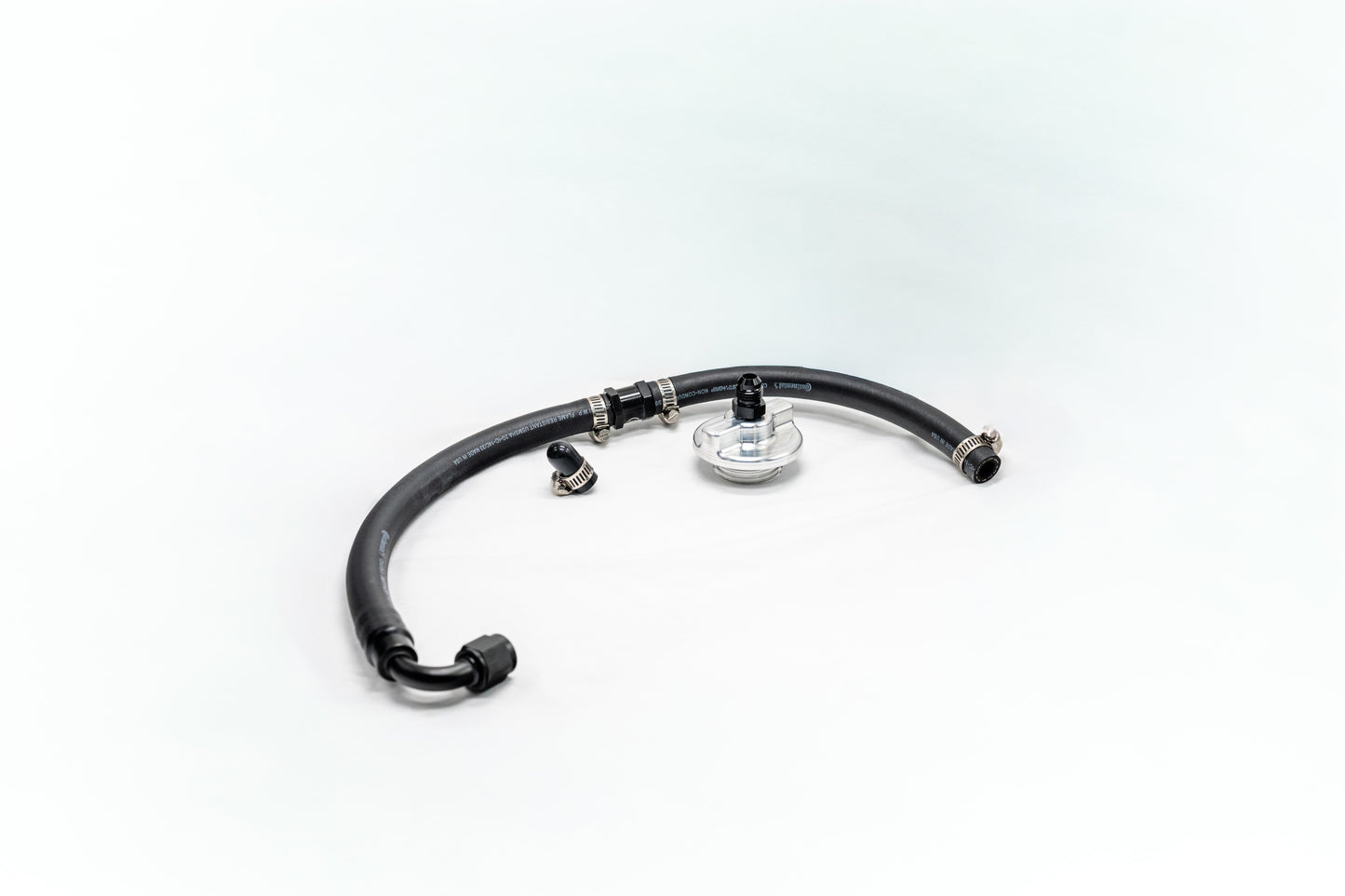

Kit Includes:

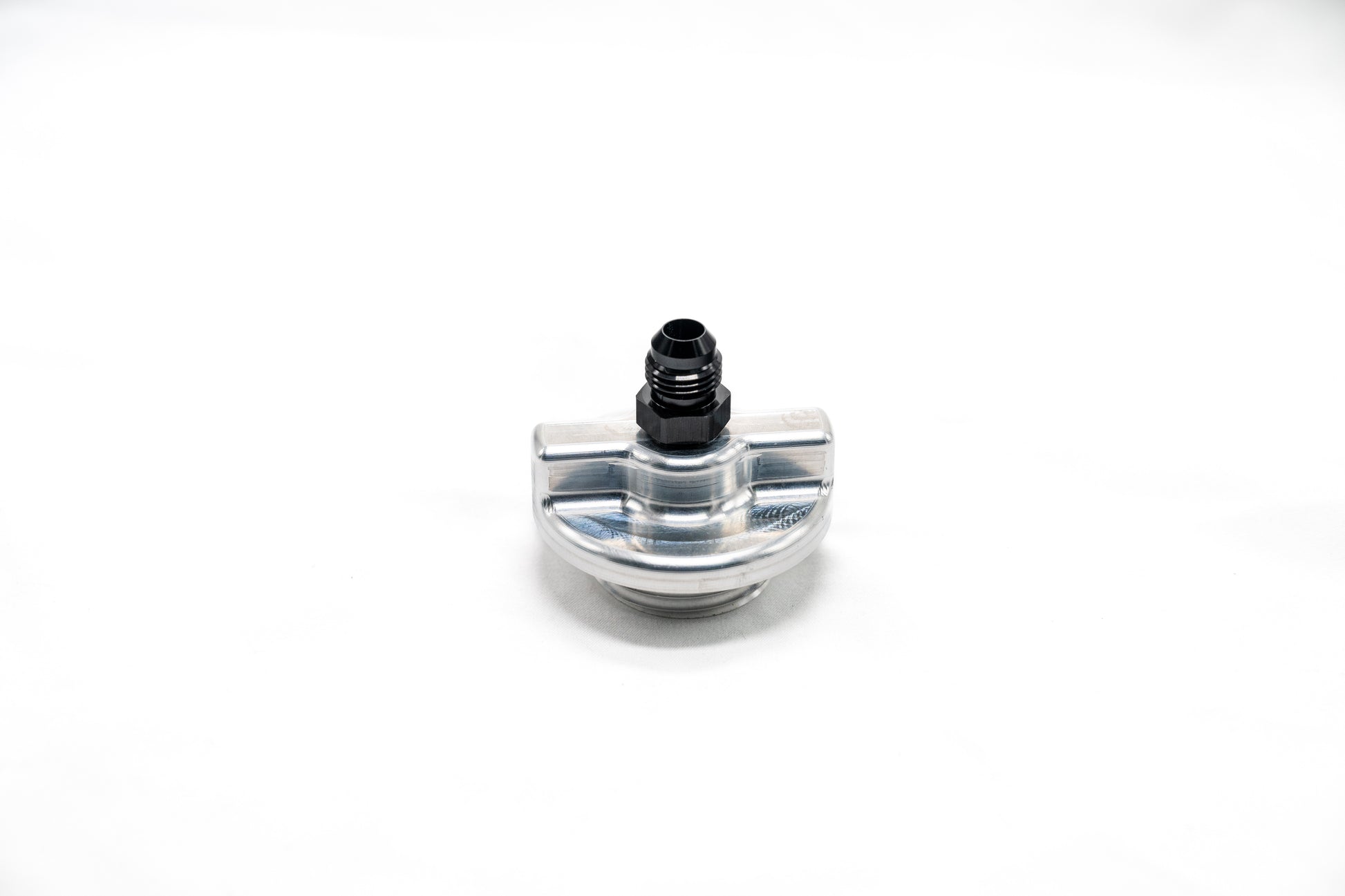

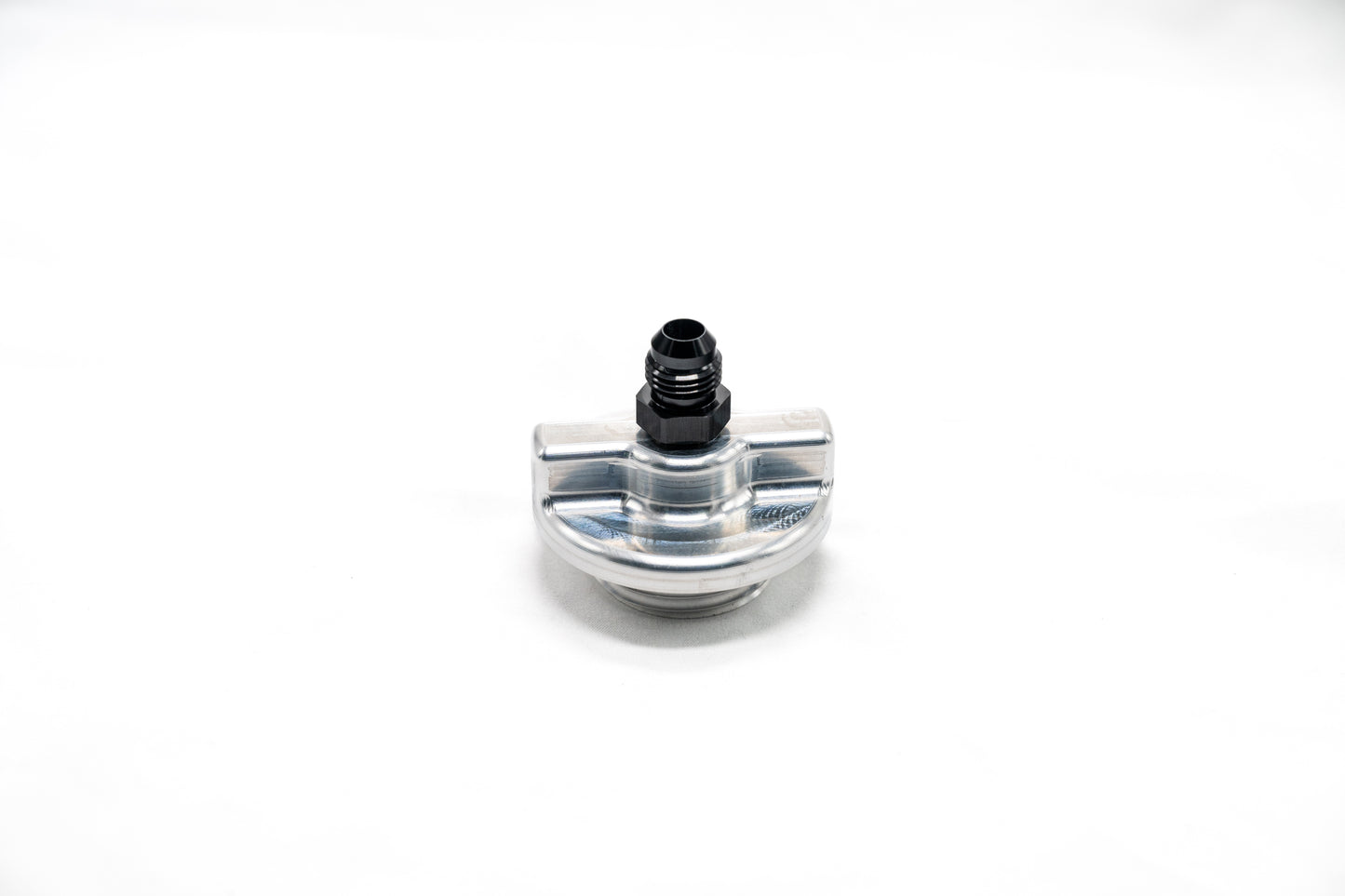

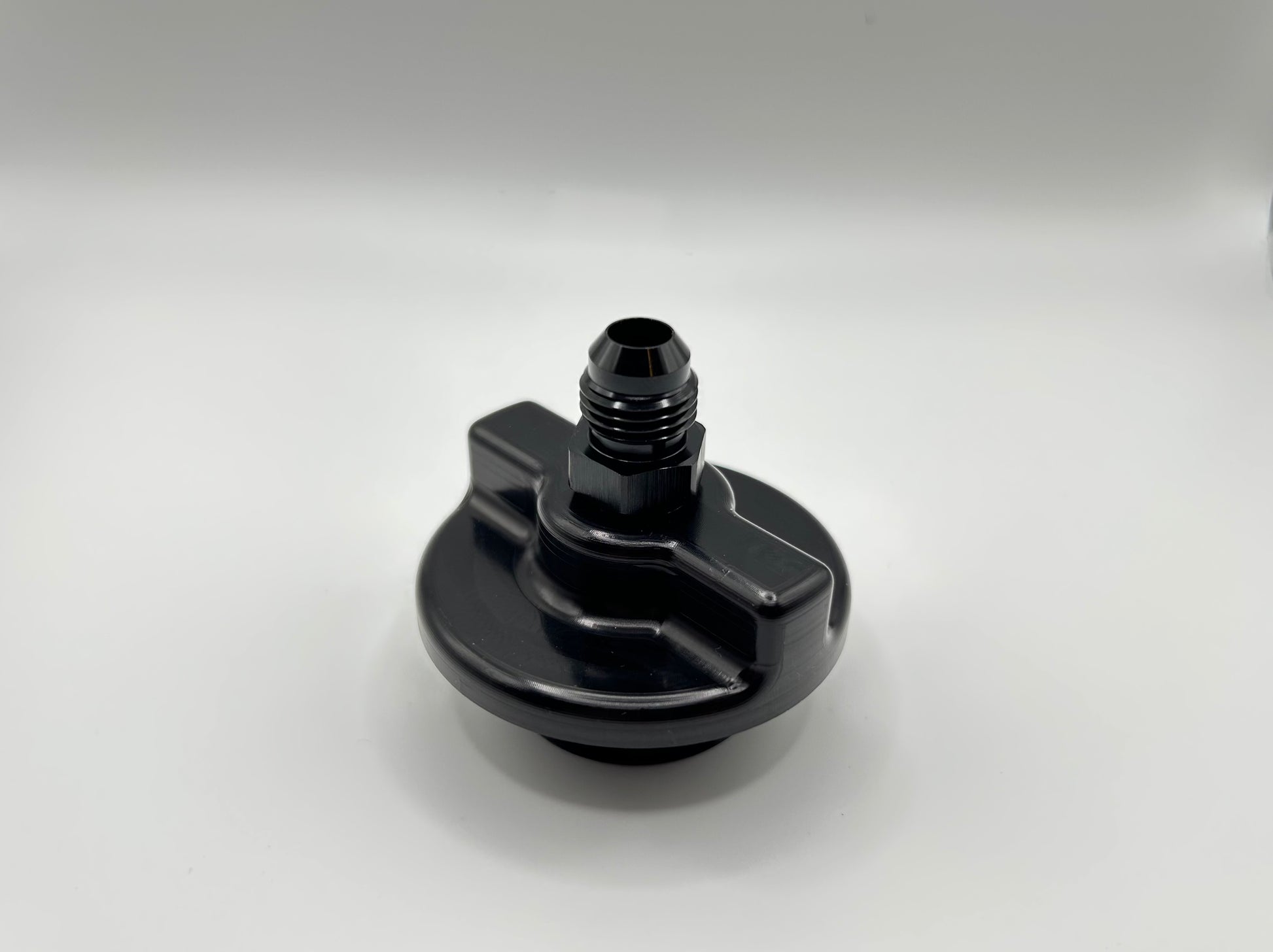

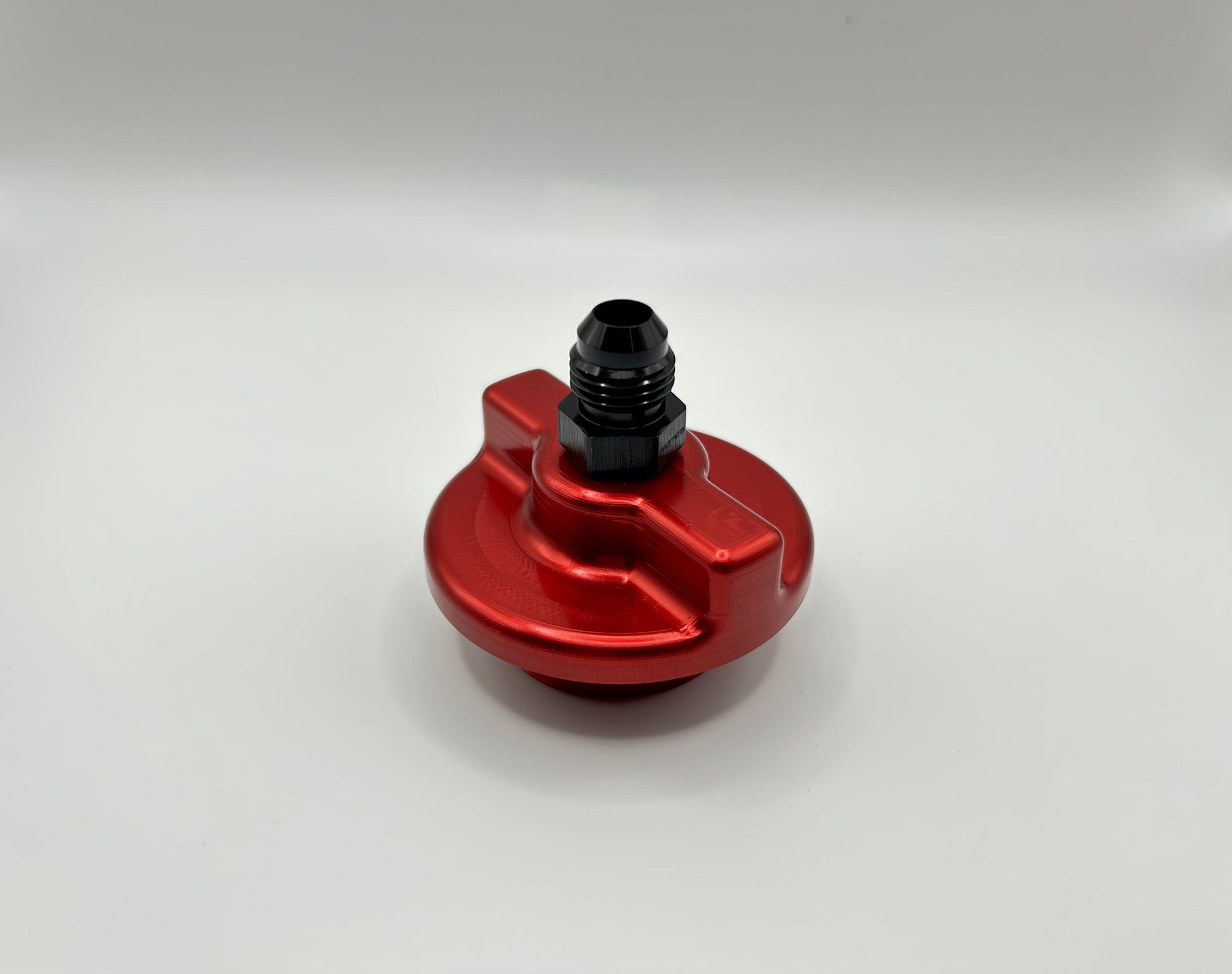

(1) Oil fill cap with swivel AN fitting
(1) Fuel rated hose
(1) PCV valve
(1) Oil rated cap for PCV valve
(4) Hose clamps
-120 degree fitting and PCV capped option shown in pictures.
